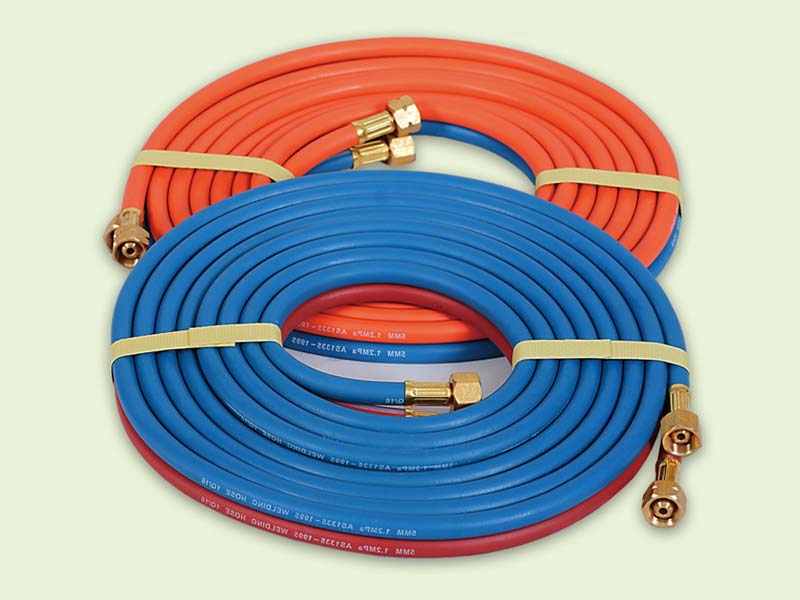

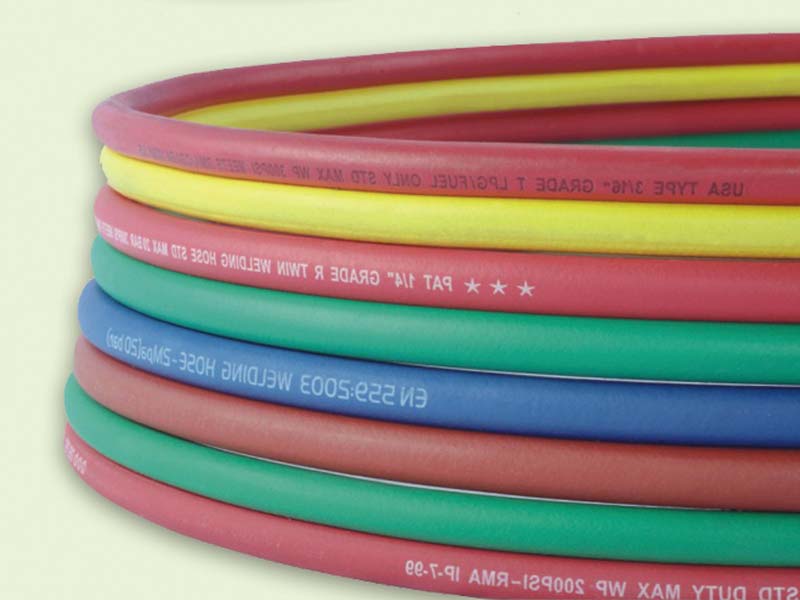

TWIN WELDING HOSE
Product number ： TWIN-WELDING-HOSE
Applications：
For oxygen, Acetylene、Fuel gas, Propane,LPG purpose.
Compliance BS EN ISO3821, BS3212
Material：
- Tube：SBR / EPDM / NR rubber compound
- Reinforcement：High strength synthetic fiber
- Cover：EPDM compound
- Good abrasion ,Ozone & weather resistant
Surface：Smooth
Color：Red/Green (Aetylene & Fuel gas/Oxygen),Red/Blue (Acetylene/Oxygen),
Blue/Orange (Oxygen/Propane,LPG)
Temperature range -30°C to 80°C
| SIZE | ID(mm) | OD(mm) | LENGTH(M) | W.P(Bar) | B.P(Bar) |
| 3/16" | 5 | 11(12) | 100M | 20Bar | 60Bar |
| 1/4" | 6 | 13 | 100M | 20Bar | 60Bar |
| 5/16" | 8 | 15 | 100M | 20Bar | 60Bar |
| 3/8" | 10(9.5) | 17(16.5) | 100M | 20Bar | 60Bar |
| 1/4"+5/16" | 6 | 13 | 100M | 20Bar | 60Bar |
| 8 | 15 | ||||
| 1/4"+3/8" | 6 | 16 | 100M | 20Bar | 60Bar |
| 9 | 16 | ||||
| 5/16"+3/8" | 8 | 16 | 100M | 20Bar | 60Bar |
| 9 | 16 |
CUT LENGTH AILABLE：
12ft,25ft.50ft,100ft, 5M,10M,15M,20M,25M,30M, Your request are acceptable.

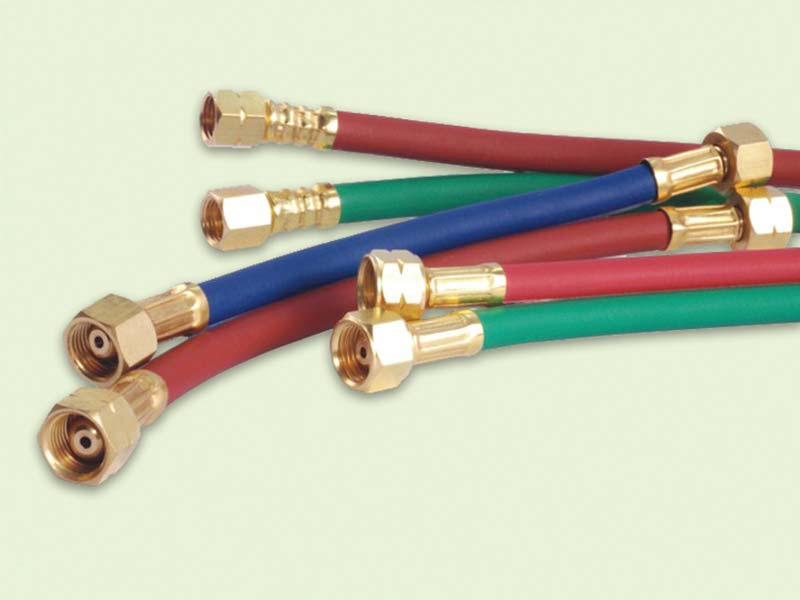

FITTING TYPE：
B-B Type,A-A Type, AGA Type, BS Check Valve
PACKING：
Bulk colis with PVC film or Reel, Cutting length with shrink film
