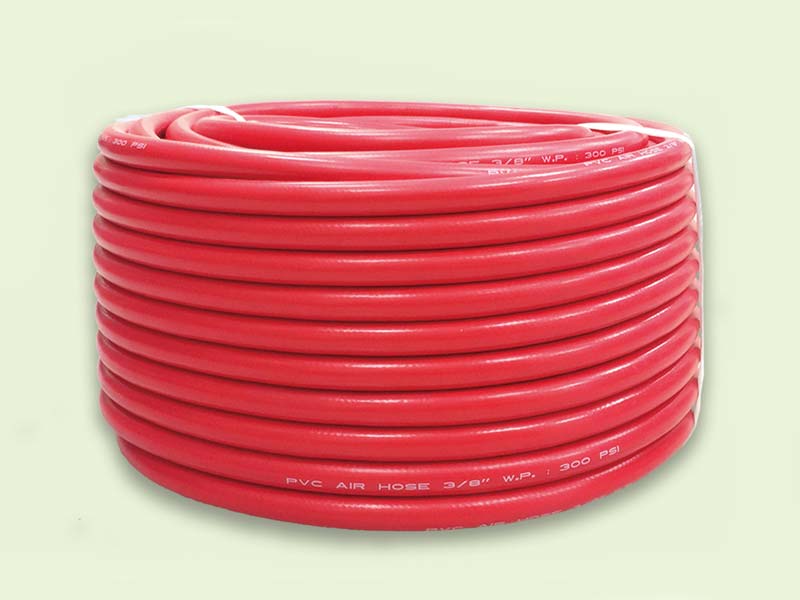

PVC AIR HOSE
Product number ： PVC-AIR-HOSE
Applications：
Air compressors for air tool cleaning equipment
Material：
- Tube：light and fiexible black PVC
- Reinforcement：spiral polyester
- Cover：light and flexible mat PVC
Surface：Smooth

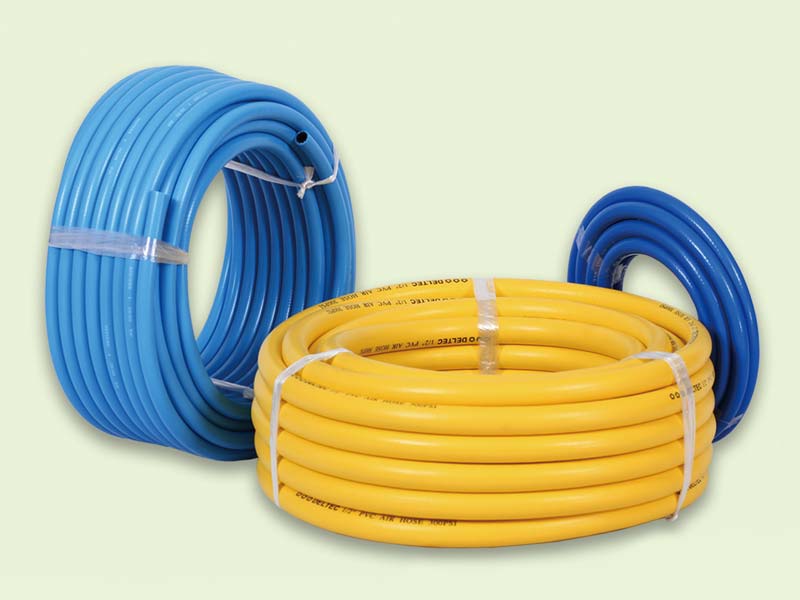

Color：yellow、red、blue、black
Temperature range -30°C to 60°C
| SIZE | ID(mm) | OD(mm) | LENGTH(M) | W.P(PSI) | B.P(PSI) |
| 3/16" | 5 | 11 | 100 | 300 | 900 |
| 1/4" | 6 | 12 | 100 | 300 | 900 |
| 5/16" | 8 | 14 | 100 | 300 | 900 |
| 3/8" | 9.5 | 15.5 | 100 | 300 | 900 |
| 1/2" | 12.7 | 19 | 100 | 300 | 900 |
| 5/8" | 16 | 23 | 100 | 300 | 900 |
| 3/4" | 19 | 27 | 50/60 | 300 | 900 |
| 1" | 25 | 33 | 50/60 | 250 | 750 |
