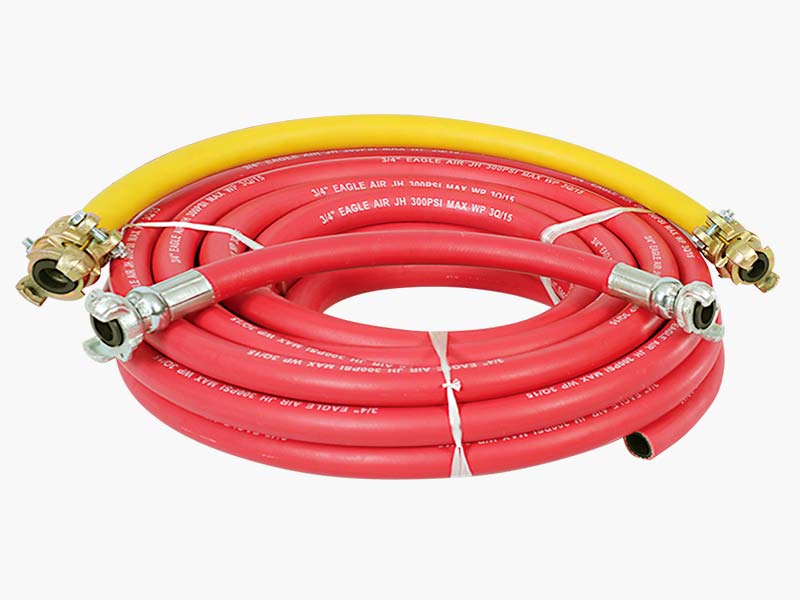

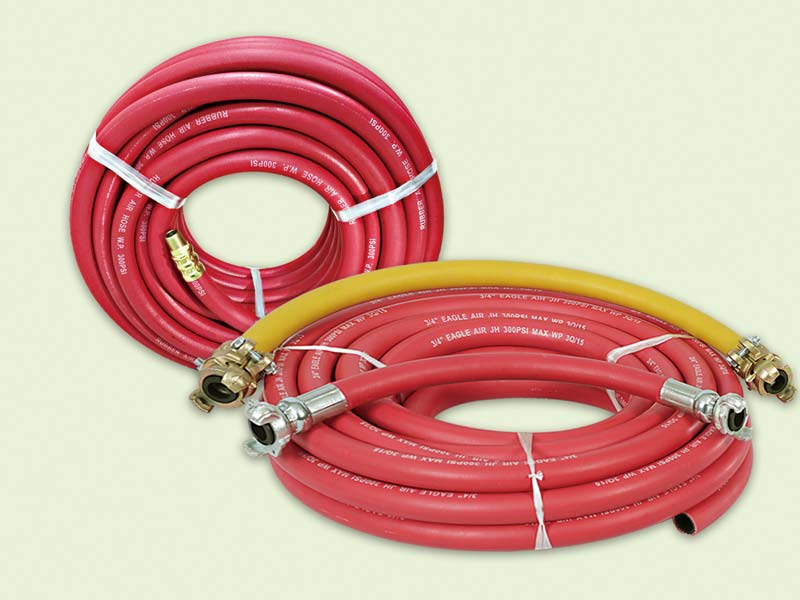

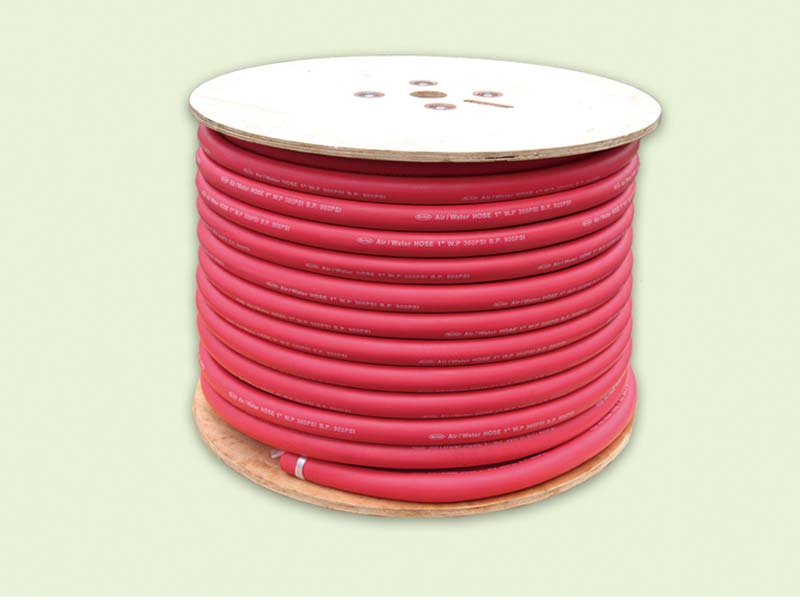

AIR HOSE
Product number ： air-hose
Applications：
Air compressor 20 bar
Cold water delivery
Cleaning equipment

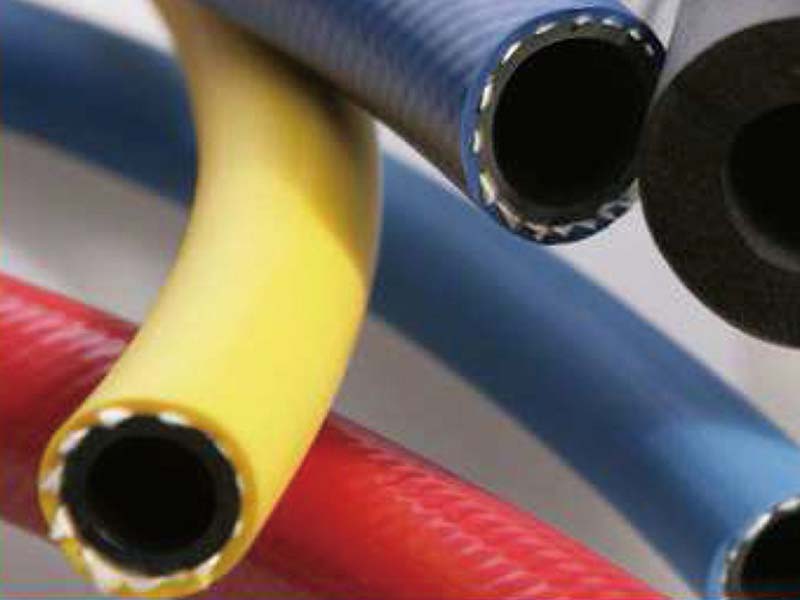

Material：
- Tube：SBR / NR rubber compound
- Reinforcement：High strength synthetic fiber
- Cover：Good abrasion & weather Resistant EPDM / SBR compound
Surface：Smooth
Color：Yellow、Red、Blue、Black
Temperature range -30°C to 70°C
| SIZE | ID(mm) | OD(mm) | LENGTH(M) | W.P(PSI) | B.P(PSI) |
| 3/16" | 5 | 11 | 100 | 300 | 900 |
| 1/4" | 6 | 13 | 100 | 300 | 900 |
| 5/16" | 8 | 15 | 100 | 300 | 900 |
| 3/8" | 9.5 | 16.5 | 100 | 300 | 900 |
| 1/2" | 12.7 | 20 | 100 | 300 | 900 |
| 5/8" | 16 | 24 | 100 | 300 | 900 |
| 3/4" | 19 | 29 | 50/60 | 300 | 900 |
| 1" | 25 | 35 | 50/60 | 250 | 750 |
